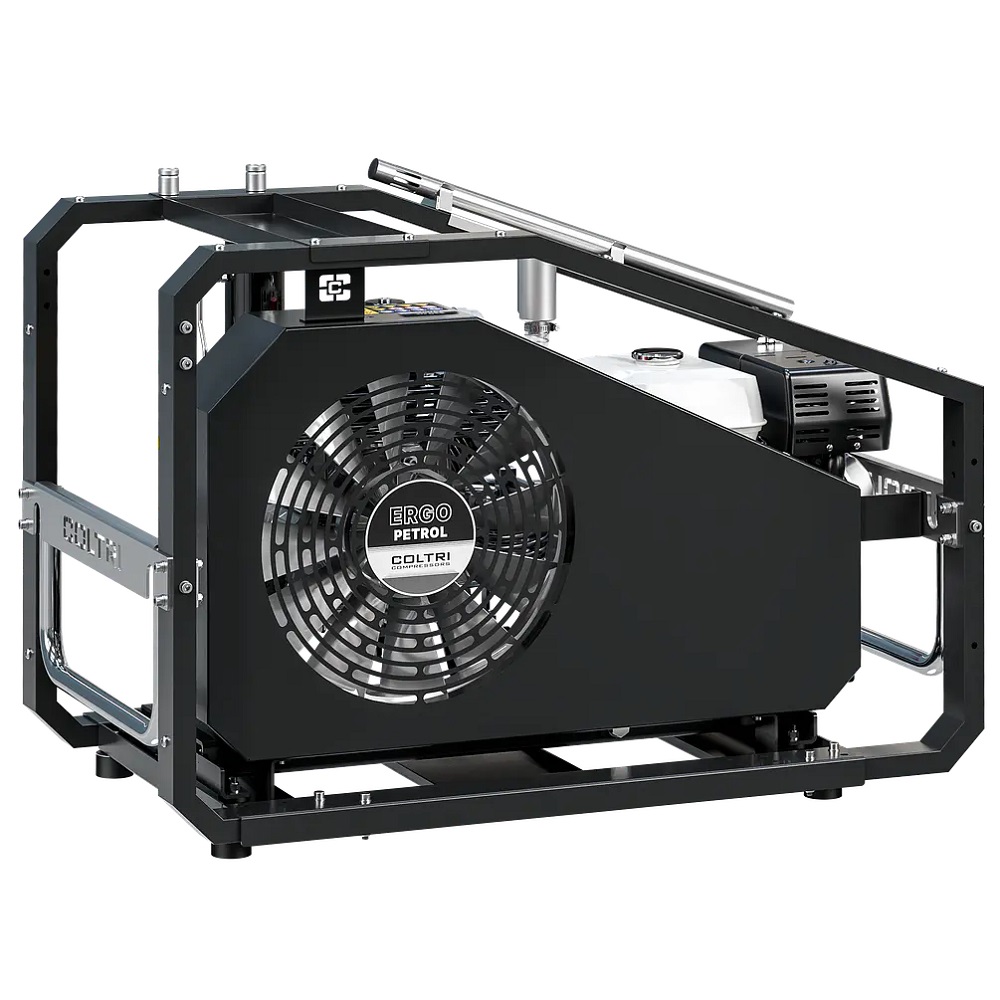

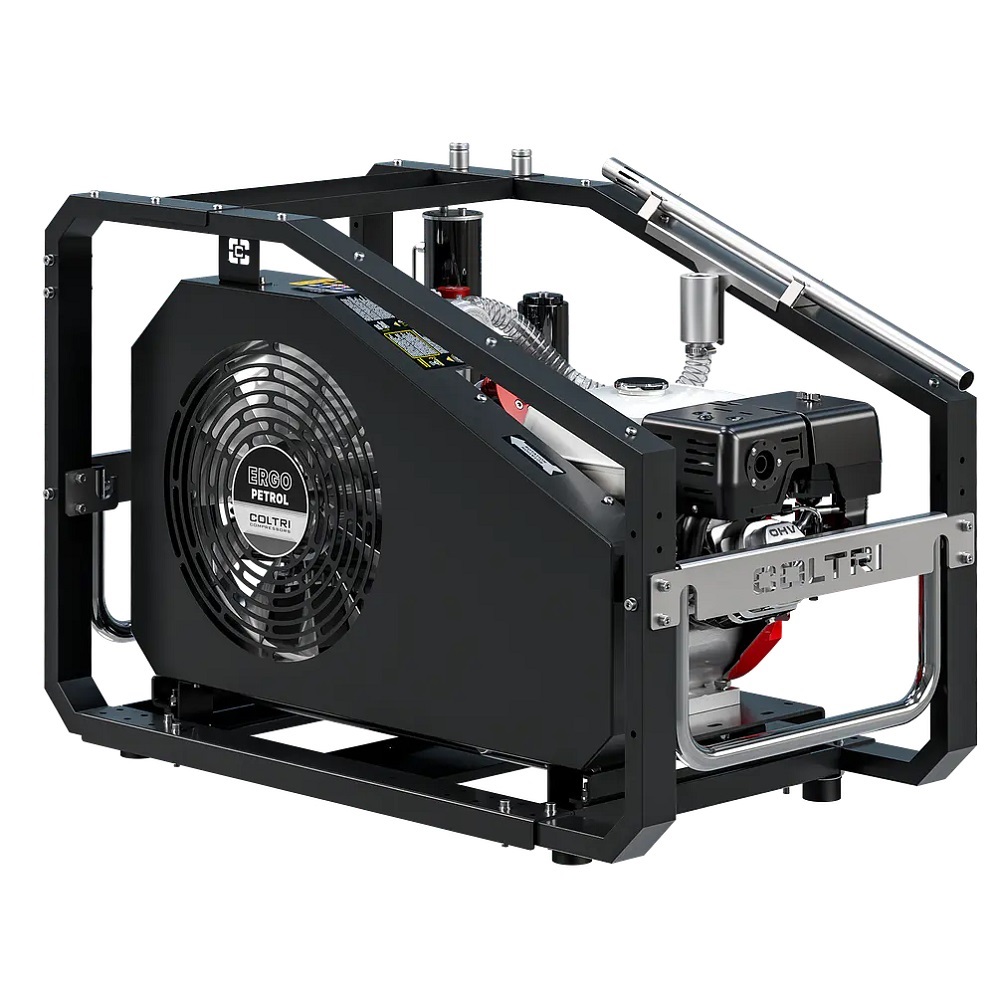

ERGO PETROL – DIESEL
2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
2 whips 1.2m long
Pressure maintenance valve
Maxifilter filter system
Oil level control with automatic shutdown
Frame color Blue RAL 5002
Description
Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen
Intake pressure: Atmospheric max 300 millibars
Nominal pressure: 250 bar / 330 bar / 360 bar
Working pressure: 232 bar / 300 bar / 330 bar
Max working pressure: 420 bar
Permissible ambient temperature range: -10° C ÷ +40° C
Permissible altitude: 0 ÷ 1.500 m SLM
Max permissible tilt: 6°
Design: Fully protective cage
Oil: Synthetic Coltri Oil ST 755
Frame: Steel thickness 1.5 mm – color RAL 5002 – Powder coating – scratch resistant
Charging rate: 270 l/min -16.2 m3/h – 9.5 CFM
Purification system
Maxifilter
Cooling air flow, min: 1.440 m3/h
Weight Standard model. Weight and dimensions may vary depending on accessories:121 kg-266 lb
Dimensions(W x D x H):112 x 63 x 77 cm – 44 x 24.8 x 30.3 in
Power:6,6 kW – 9 Hp
Type: Petrol Honda GX 270
Speed (RPM):3.600
